- Rating: 4.6
Key Features
Within 72 Hours Installation/Demo
7 Days Brand Replacement
Key Features

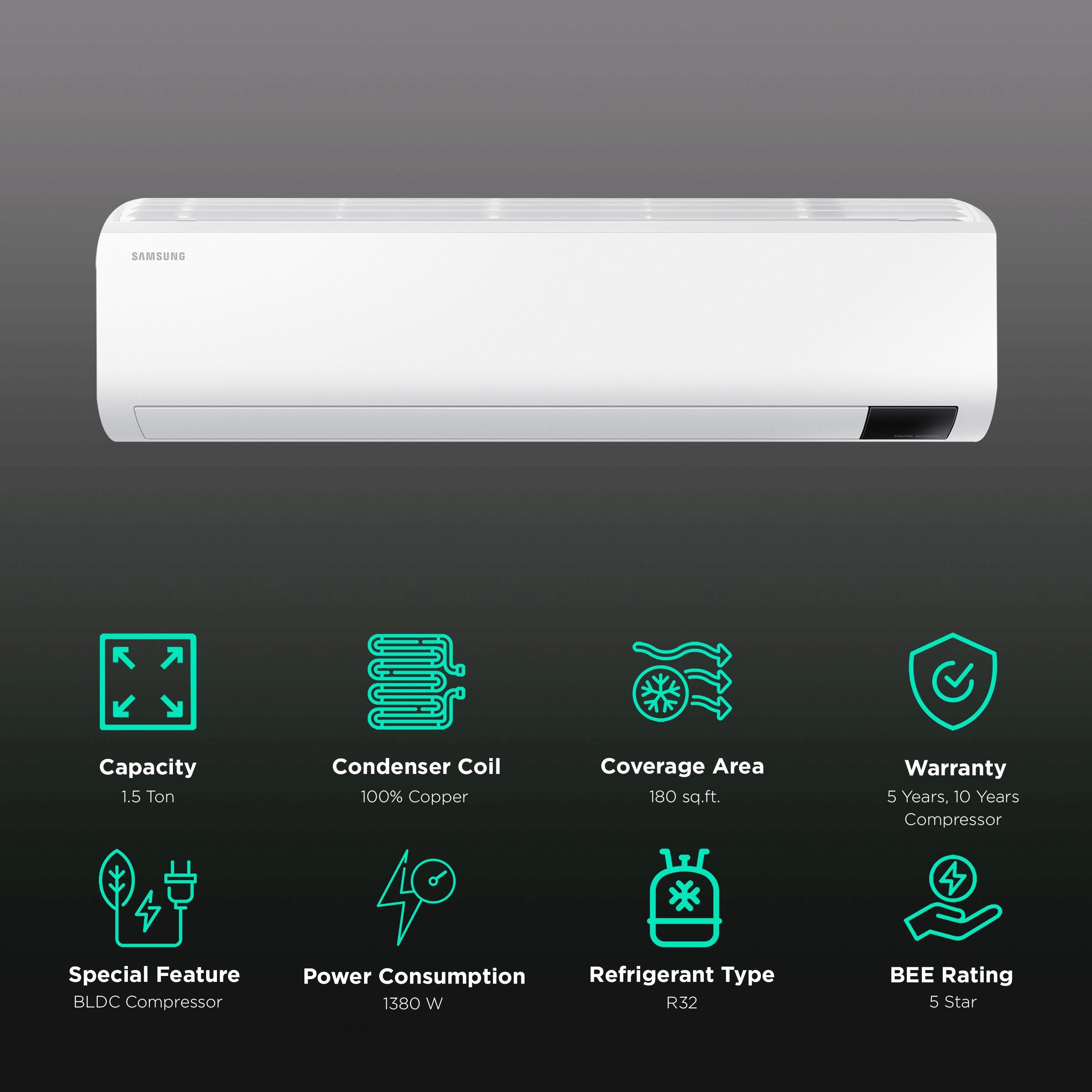

- 1.5 Ton Inverter AC, 5 Star Rating
- Copper Condenser
- 5 Years Comprehensive Warranty, 10 Years Compressor Warranty
- For Rooms up to 180 sqft
- Power Consumption: 1380 W
- Refrigerant: R32
- Triple Protector Plus Technology, Fast Cooling
Specifications
Air Conditioner Category
Air Conditioner Type
- Split
Air Conditioner Capacity
- 1.5 Ton
Coverage Area
- 150 Sq.Ft.
Manufacturer Details
Brand
- Samsung
Model Series
- AR18BY5ZAWKNNA
Model Number
- AR18BY5ZAWKNNA

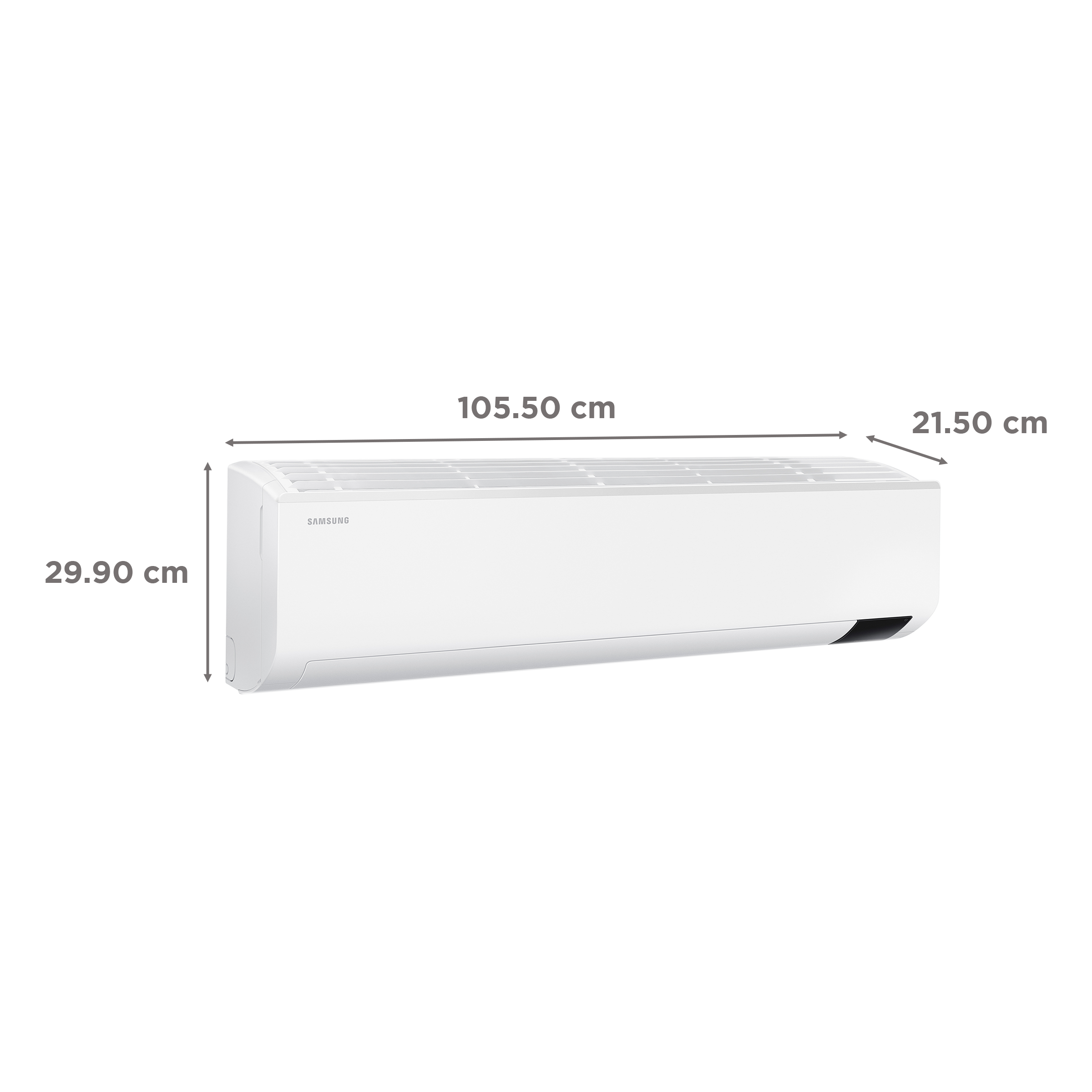

Product Dimensions (Open)
Dimensions In CM (WxDxH)
- 105.50 x 21.50 x 29.90
Dimensions In Inches (WxDxH)
- 41.54 x 8.46 x 11.77
Air Conditioner Features
Air Conditioner Modes
- Fan Mode, Good Sleep, Quiet Mode
Convertible Mode
- Yes
Air Flow Volume
- 682 CFM
Humidity Control
- Yes
Inverter Technology
- Yes
Cooling Capacity
- 5000 Watts
Ambient Temperature (Cooling/Heating) In Degree Celsius
- 52 Degree Celsius
Air Conditioner Features
- 5 Step Comfortable Cooling | Auto Restart | AI Auto Cooling | Durafin Ultra Cooling | Triple Protector Plus
Air Conditioner Functions
Compressor Type
- High Efficiency Rotary Compressor
Refrigerant Type
- R32
Noise Level (Indoor Unit)
- 49/30 dB
Noise Level (Outdoor Unit)
- 59 dB
Air Conditioner Filters
- Easy Filter Plus (Anti-Bacteria) | HD Filter
Air Conditioner Physical Attributes
Connecting Pipe Length
- 30 Meters
Condenser Coil Type
- Copper
Louvers Swing Type
- Up/Down
Other Body Features
- White Strip Design
Air Conditioner Screen Specifications
Display
- No
Access Control And Security
Lock
- No

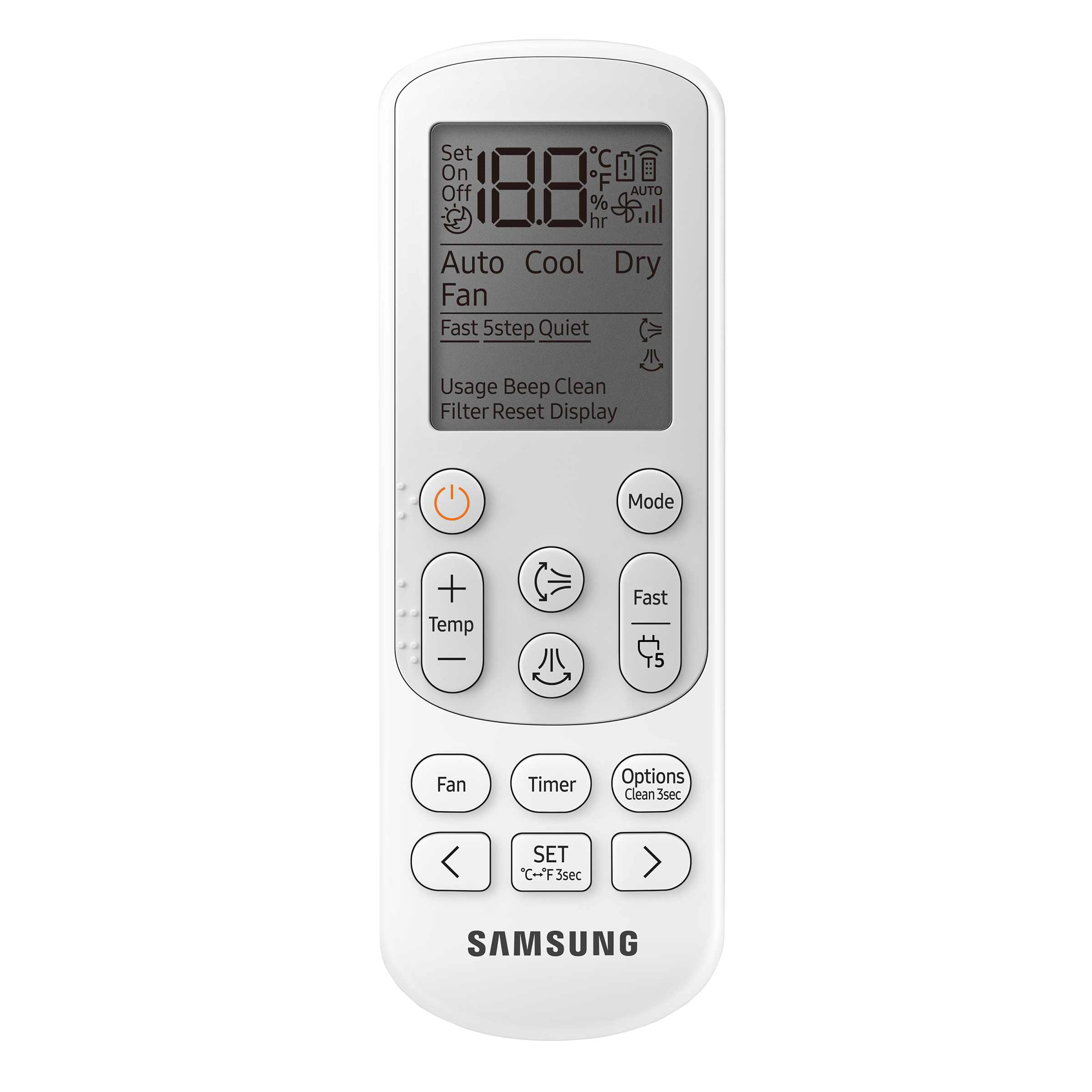

Remote Control Details
Energy Standards
Energy Efficiency (Star Rating)
- 5 Star
Indian Seasonal Energy Efficiency Ratio (ISEER)
- 4.65
Air Conditioner Plug Details
Power Consumption
- 1380 Watts
Voltage Rating
- 230 V
Frequency
- 50 Hz
Aesthetics
Brand Color
- White
Color
- WHITE
In The Box
Generic Name
- Air Conditioner
Main Product
- 1 x Indoor Unit & Outdoor Unit
Accessories
- RemoteControl | Wall
Documents
- Quick Start Guide | Warranty Card | Safety and Warranty Documents | User Manual
In The Box
Main product
- 1 x Air Conditioner U
Package Includes
- 1xAir Conditioner
Generic Name
- Air Conditioner
Product Dimensions (Open)
Dimensions In Inches (WxDxH)
- 41.53 x 8.46 x 11.77
Dimensions In CM (WxDxH)
- 105. x 21.4 x 29.8
Product Weight
- 11.4 Kg

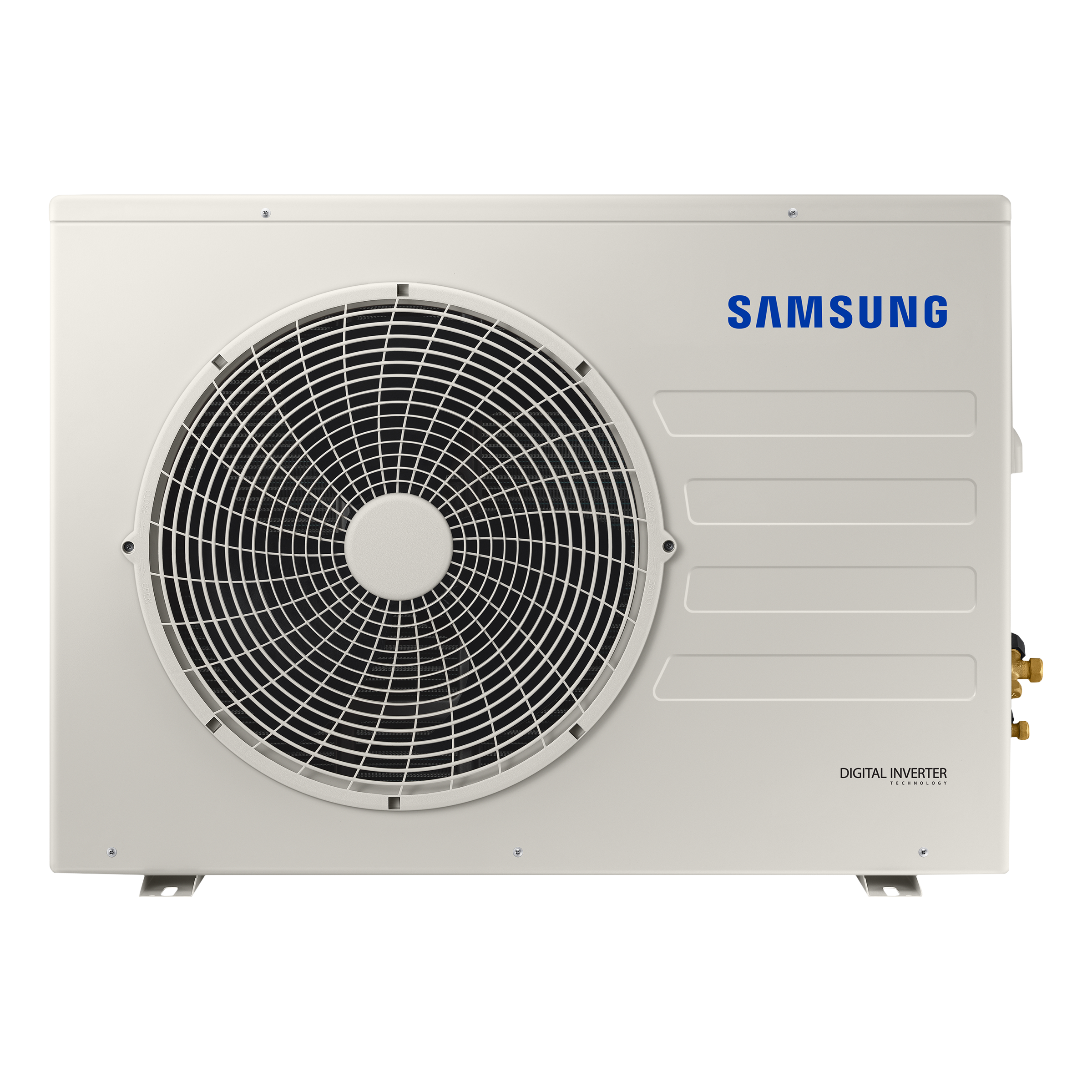

Product Dimensions Outdoor Unit
Dimensions in CM (W x D x H)
- 79.00 x 28.50 x 54.80
Dimensions in Inches (W x D x H)
- 31.10 x 11.22 x 21.57
Outdoor Unit Height
- 54.8
Outdoor Unit Depth
- 28.5
Outdoor Unit Width
- 79
Packaged Dimensions
Product Packaged Dimensions Outdoor Unit
Outdoor Unit Package Dimensions in CM (W x D x H)
- 92.60 x 41.20 x 64.00
Dimensions in Inches (W x D x H)
- 36.45 x 16.22 x 25.19
Outdoor Unit Package Weight
- 34.4 Kg
After Sales & Services
Warranty on Main Product
- 60 Months
Additional Warranties
- 5 Years Warranty On Condenser | 10 Years Warranty On Compressor
Warranty Type
- Onsite
Standard Warranty Includes
- Manufacturing Defects
Standard Warranty Excludes
- Physical Damage
Installation & Demo
- Croma will coordinate for Installation and Demo on Chargeable Basis
Installation & Demo applicable
- Yes
Company Contact Information
Customer Support Number
- 1-800-5-726-7864
Customer Support Email
- support.india@samsung.com
Manufacturer/Importer/Marketer Name & Address
- Manufacturer Name & Address: Samsung Electronics Pvt. Ltd. 6th Floor DLF Centre Sansad Marg New Delhi - 110001
Country of Manufacture
- India
Country of Brand Origin
- South Korea
Croma Contact Information
Customer Care Contact Person
- Grievance Officer
Registered Name and Address
- Infiniti Retail Ltd. - Unit No. 701 & 702, 7th Floor, Kaledonia, Sahar Road, Andheri (East); Mumbai - 400069. India
Customer Support Number
- 1800 572 7662
Customer Support Email
- customersupport@croma.com
Croma Service Promise
Customer Support Email
- customersupport@croma.com
Registered Name and Address
- Infiniti Retail Ltd. - Unit No. 701 & 702, 7th Floor, Kaledonia, Sahar Road, Andheri (East); Mumbai - 400069. India
Customer Support Number
- 1800 572 7662
Customer Care Contact Person
- Grievance Officer
Overview
High Efficiency and Performance
With a copper condenser, the SAMSUNG Arise 5-in-1 Convertible 1.5-Ton 5 Star Inverter Split AC is designed for rooms up to 180 sq.ft, providing efficient cooling and optimum performance. Moreover, Utilising eco-friendly refrigerant R32 ensures quick cooling and optimal comfort in any environment.
Customised Energy Control
With a 5-step mode, this split AC optimises energy consumption. Plus, the 5-step convertible cooling adjusts compressor operation from 40% to 120%, allowing for efficient cooling even in moderate weather conditions, thereby saving energy and reducing electricity bills.
Lasting Protection, Optimal Performance
Thanks to the Durafin Ultra technology, this split AC features an anti-corrosive layer and a hydrophilic layer that safeguards the heat exchanger from rust. Furthermore, this durability is verified through a salt spray test, ensuring long-lasting protection and optimal performance.
Efficient Cooling
Utilising Digital Inverter Boost technology, this 1.5-ton AC cools the air 43% faster. Moreover, with a large fan, a wide inlet, and a wide blade, the enhanced design ensures that cool air is dispersed far and wide, reaching up to 15m for optimum comfort.
Stable and Durable
Equipped with Triple Protector Plus technology, this SAMSUNG split AC is safeguarded against damage from power surges and fluctuating electrical currents. Additionally, an anti-corrosion coating protects the condenser and cabinet, ensuring stability and durability even in harsh environmental conditions.
Easy-to-Clean Filter
The Easy Filter Plus of this split AC, conveniently located outside on the top, can be easily removed and cleaned. Plus, its dense mesh effectively keeps the heat exchanger clean, while an anti-bacterial coating helps protect against airborne contaminants, ensuring clean and healthy air circulation.
