Key Features
Within 72 Hours Installation/Demo
7 Days Brand Replacement
Key Features
- 1 Ton Inverter Split Smart AC, 5 Star Rating
- Copper Condenser
- 1 Year Comprehensive Warranty, 10 Years Compressor Warranty
- For Rooms up to 130 sqft
- Power Consumption: 900 Watts
- Refrigerant: R32
- Shield Blu Plus, Active Air Purification
Specifications
Air Conditioner Category
Air Conditioner Type
- Split
Air Conditioner Capacity
- 1 Ton
Coverage Area
- 130 Sq.Ft.
Approximate Coverage Area(Sq.M)
- 12.07 Sq.M.
Installation Type
- Wall Mount
Manufacturer Details
Brand
- Panasonic
Model Series
- CS/CU-XU12ZKYF
Model Number
- CS/CU-XU12ZKYF

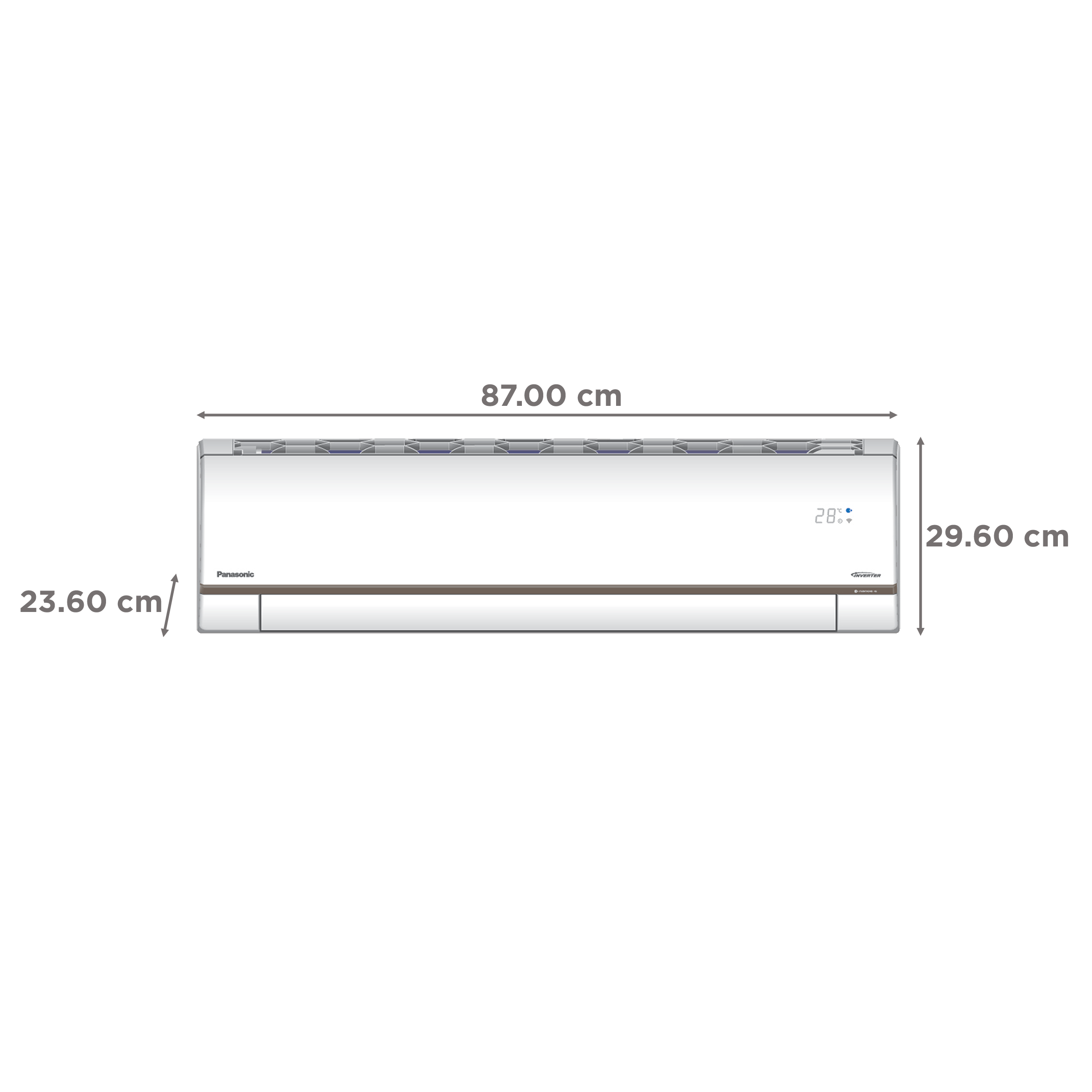

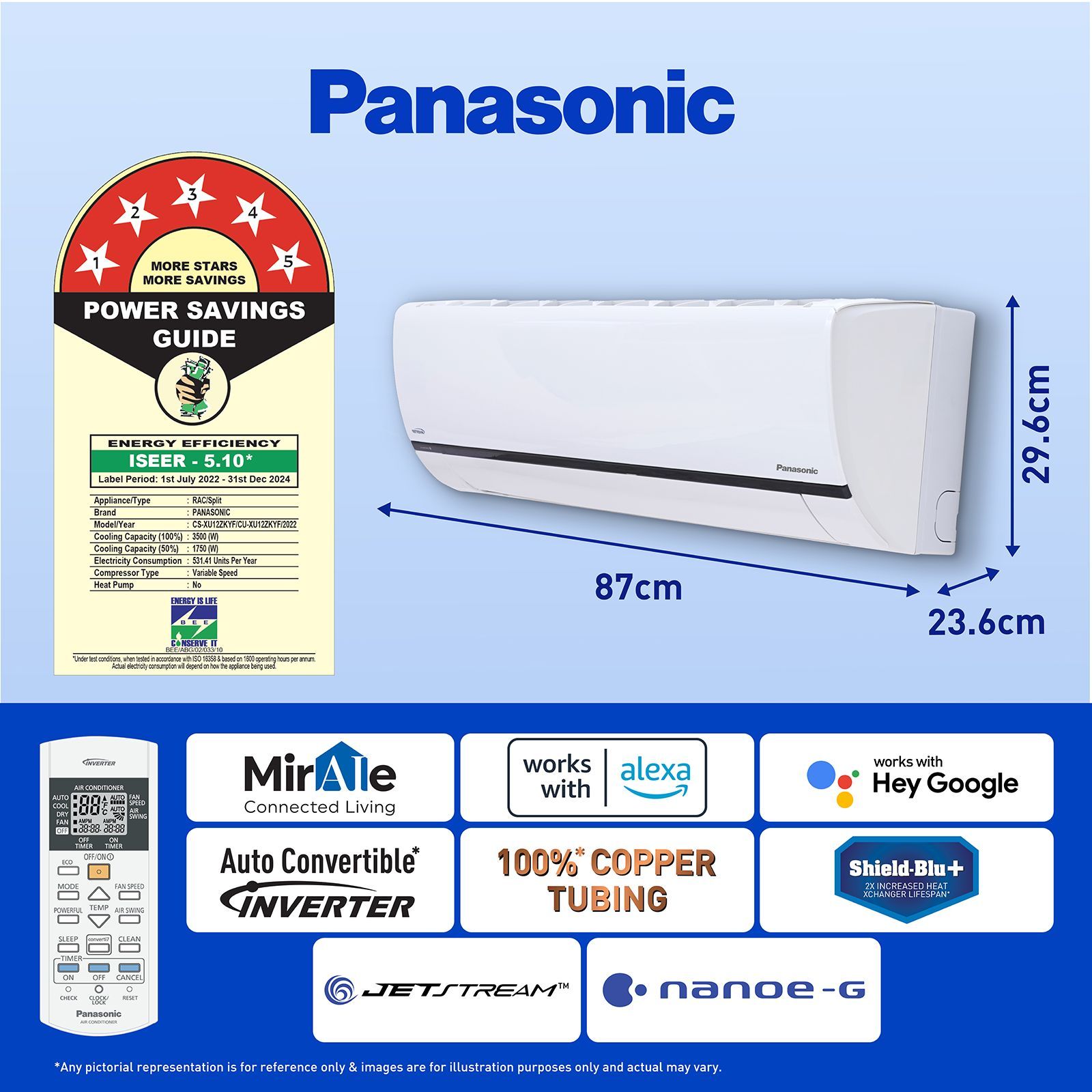

Product Dimensions (Open)
Dimensions In CM (WxDxH)
- 86.9 x 23.5 x 29.5
Product Weight
- 10 Kg
Dimensions In Inches (WxDxH)
- 34.25 x 9.29 x 11.65
Air Conditioner Features
Convertible Mode
- Yes
Air Flow Volume
- 477 CFM
Humidity Control
- Yes
Inverter Technology
- Yes
Stabilizer Free Operation
- Yes
Cooling Capacity
- 11942 (5374 - 13140) BTU Per Hours | 3500 (1575 - 3850) Watts
Ambient Temperature (Cooling/Heating) In Degree Celsius
- 16 - 52 Degree Celsius
Rated Current
- 4.1 Amps
Air Conditioner Features
- Units Consumed Per 1600 Hours: 531.41 | Stabilizer Free Operation Voltage Range: 100 - 290V
Air Conditioner Functions
Compressor Type
- Single Rotary Compressor
Refrigerant Type
- R32
Temperature Settings
- 24
Noise Level (Indoor Unit)
- 38 - 43 dB
Noise Level (Outdoor Unit)
- 53 dB
Air Purification Function
- Yes
Air Purification Technology
- Active Purification
Additional Air Conditioner Functions
- converti7
Air Conditioner Physical Attributes
Connecting Pipe Type
- Copper Connecting Pipe
Connecting Pipe Length
- 3 Meters
Condenser Coil Type
- Copper
Drainage Hose Pipe
- Yes
Louvers Swing Type
- Up/Down | Left/Right
Other Body Features
- ECO Tough ODU Casing
Smart Air Conditioner Functions
Smartphone Application Controls
- MirAIe
Smart Sensors
- Yes
Voice Guidance
- Yes
Additional Smart Functions
- Amazon Alexa and Google Assistant Support | Google Home Compatibility
Air Conditioner Screen Specifications
Display
- Hidden
Network Connectivity
Wi-Fi Supported
- Yes
Remote Control Details
Remote Control
- IR
Remote Battery Type
- AAA

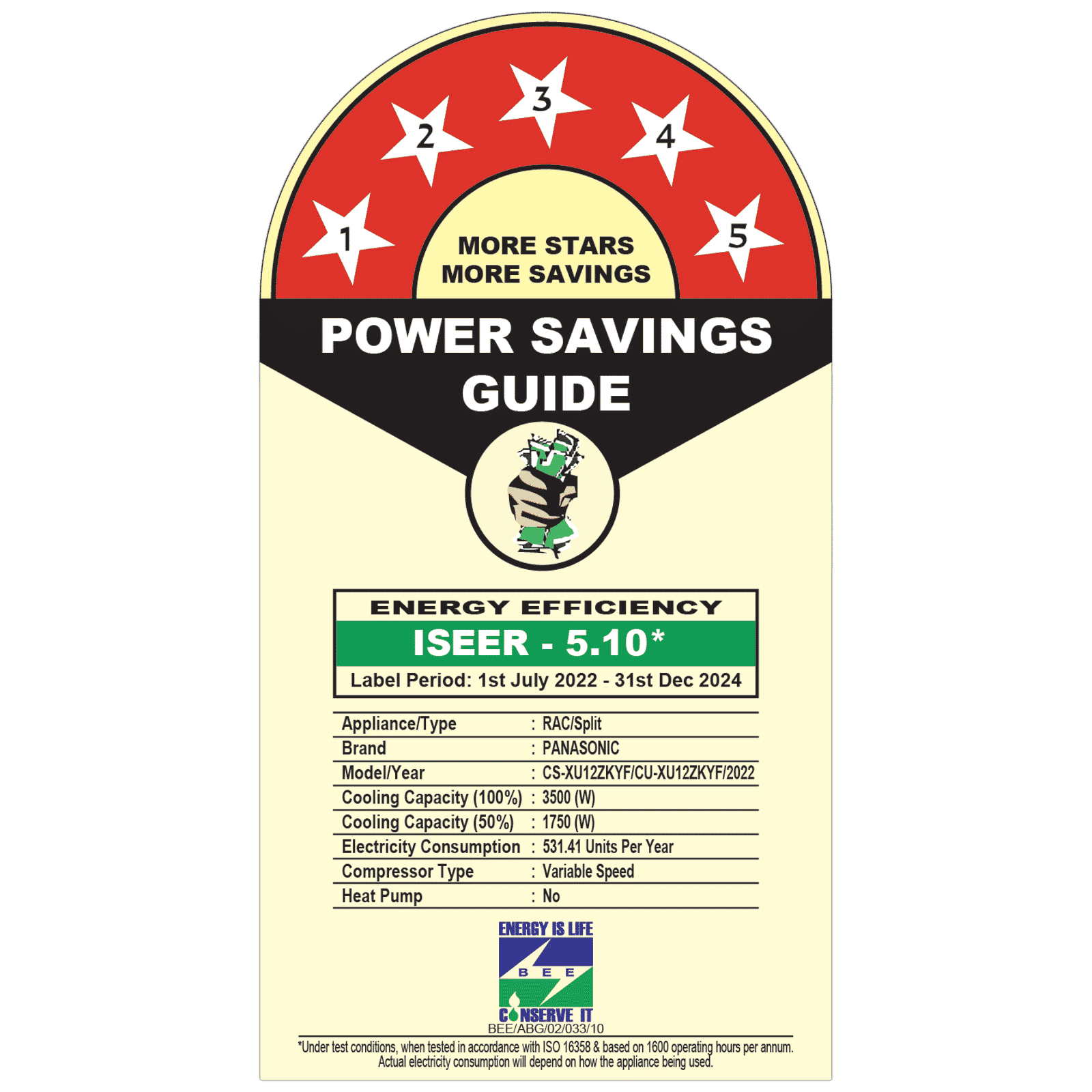

Energy Standards
Energy Efficiency (Star Rating)
- 5 Star
Economy Mode
- Yes
Air Conditioner Plug Details
Power Consumption
- 900 Watts
Voltage Rating
- 220 - 240V
Frequency
- 50 Hz
Phase
- Single Phase
Cord Length
- 3.6 Meters
Maximum Operating Temperature
- 52 Degree Celsius
Materials & Durability
Body Material
- Plastic
Aesthetics
Brand Color
- White
Color
- WHITE
In The Box
Documents
- Warranty Card | User-Manual
Main product
- 1 x Indoor Unit & Outdoor Unit
Accessories
- RemoteControl | RemoteControlBattery | InstallationKit
Generic Name
- Air Conditioner

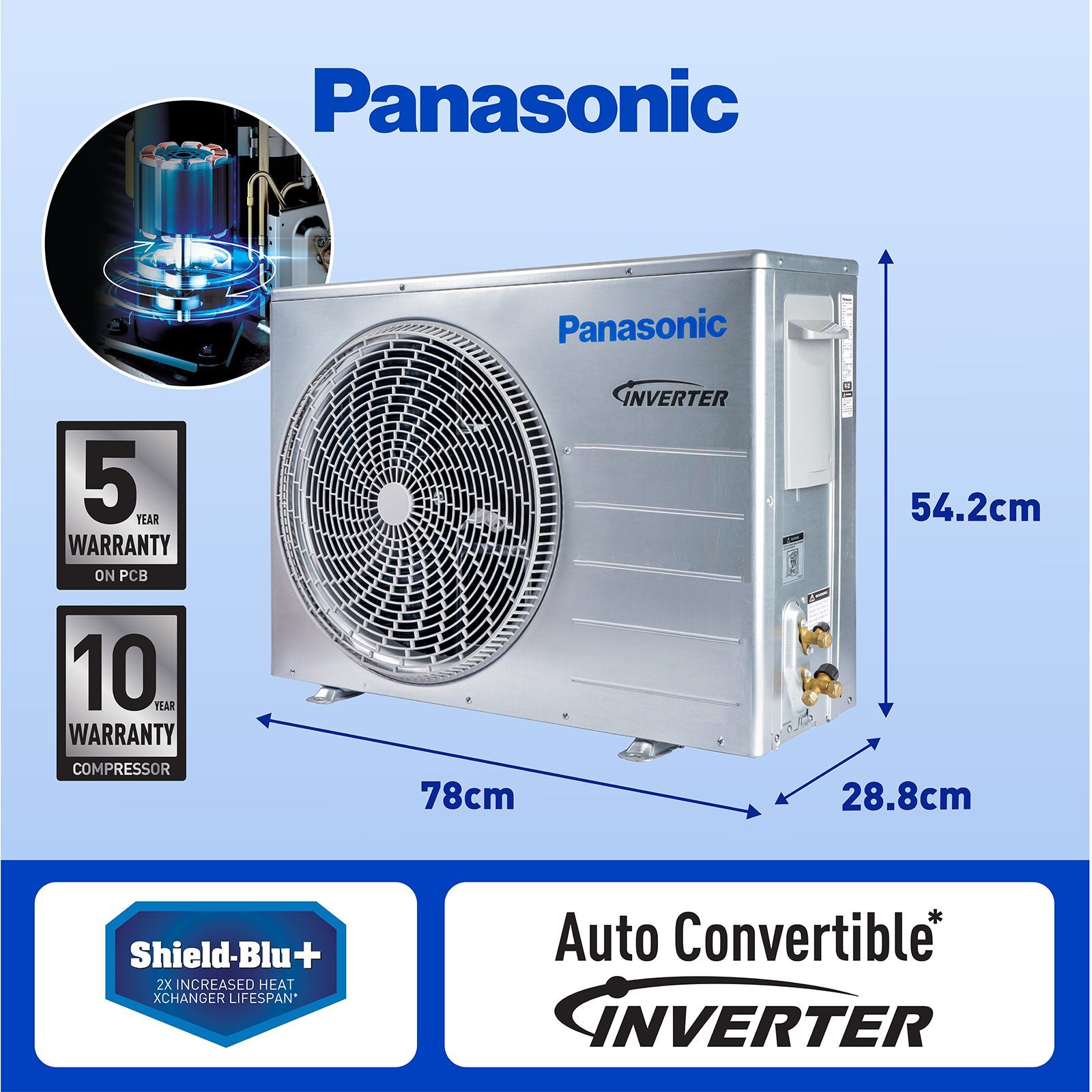

Product Dimensions Outdoor Unit
Dimensions in CM (W x D x H)
- 78.00 x 28.80 x 54.20
Dimensions in Inches (W x D x H)
- 30.71 x 11.34 x 21.34
Outdoor Unit Weight
- 25 Kg
Packaged Dimensions
Package Dimensions in Inches (W x D x H)
- 37.8 x 10.87 x 14.17
Package Weight
- 11 Kg
Package Dimensions in cm (W x D x H)
- 96.00 x 27.60 x 36.00
Product Packaged Dimensions Outdoor Unit
Outdoor Unit Package Dimensions in CM (W x D x H)
- 90.00 x 40.50 x 60.70
Dimensions in Inches (W x D x H)
- 35.43 x 15.94 x 23.9
Outdoor Unit Package Weight
- 27.5 Kg
After Sales & Services
Warranty on Main Product
- 12 Months
Additional Warranties
- 1 Year Warranty on Condenser| 10 Years Warranty on Compressor
Warranty Type
- Onsite
Installation & Demo
- Croma will coordinate for Installation and Demo on Chargeable Basis
Installation & Demo applicable
- Yes
Certification
ROHS Compliance
- Yes
Energy Star Certification
- Yes
Company Contact Information
Customer Support Number
- 18001081333
Customer Support Email
- helpline@in.panasonic.com
Country of Manufacture
- India
Country of Brand Origin
- Japan
Croma Service Promise
Customer Support Email
- customersupport@croma.com
Registered Name and Address
- Infiniti Retail Ltd. - Unit No. 701 & 702, 7th Floor, Kaledonia, Sahar Road, Andheri (East); Mumbai - 400069. India
Customer Support Number
- 1800 572 7662
Customer Care Contact Person
- Grievance Officer
Overview
Efficient and Fast Cooling
Boasting an airflow volume of up to 477CFM, the Panasonic CS/CU-XU12ZKYF 1-ton Split Air Conditioner is ideal for rooms up to 130Sq.Ft. This split air conditioner incorporates advanced fast cooling to cool down your room rapidly, offering swift relief from the heat as soon as it's powered on. You don't need to wait long for a refreshing and revitalising experience as this AC delivers quick cooling, giving you a burst of energy and renewed vitality.
Shield Blu Plus Technology
The Shield Blu Plus technology creates an anti-corrosive layer on indoor and outdoor units of this AC to prevent scratches and leakage.
Active Air Purification
Featuring the active air purification method, it employs advanced mechanisms such as UV-C light, ionisation, or other active methods to neutralise and eliminate airborne contaminants, ensuring a cleaner and healthier indoor environment.
7-in-1 Convertible Mode
With the AC's 7-in-1 convertible mode, you have the freedom to fine-tune the cooling capacity to your liking, ensuring energy efficiency and customised cooling solutions.
Sleep Mode
The sleep mode in this AC creates the ideal sleeping conditions by regulating temperature for a peaceful and energy-efficient rest.
Single Rotary Compressor
The single rotary compressor in this 1-ton AC is a testament to its lasting performance and cooling efficiency.
5-Star AC
Owing to its low power consumption of 900W and a 5-star rating, this air conditioner ensures that you can enjoy efficient cooling while being mindful of your energy usage and costs.
Copper Condenser Coil
With a copper condenser coil, this Panasonic air conditioner optimises heat exchange efficiency, resulting in fast and efficient cooling in your room.
PM2.5 Filter
Fitted with a PM2.5 filter, this AC effectively traps dust, allergens, and airborne particles, ensuring clean air in your home.
Self-Clean Function
The self-clean mode in this air conditioner automatically cleans and dehumidifies the unit, ensuring fresh and comfortable air quality in your space.
R32 Refrigerant
Featuring R32 refrigerant, this air conditioner is engineered for eco-conscious and efficient cooling, reducing its impact on the environment.
Stabiliser-Free Operation
With stabiliser-free operation, this AC ensures it can handle voltage fluctuations without the need for an additional stabiliser.
Enjoy Uninterrupted Cooling
Even during power cuts, this AC remains operational because it is inverter-compatible.
