Key Features
Within 72 Hours Installation/Demo
7 Days Brand Replacement
Key Features
- 1 Ton Inverter Split Smart AC, 4 Star Rating
- Copper Condenser
- 1 Year Comprehensive Warranty, 10 Years Compressor Warranty
- For Rooms up to 130 sqft
- Power Consumption: 1025 Watts
- Refrigerant: R32
- Shield Blu Plus, Active Air Purification
Specifications
Air Conditioner Category
Air Conditioner Type
- Split
Air Conditioner Capacity
- 1 Ton
Coverage Area
- 130 Sq.Ft.
Approximate Coverage Area(Sq.M)
- 12.07 Sq.M.
Installation Type
- Wall Mount
Manufacturer Details
Brand
- Panasonic
Model Series
- CS/CU-WU12ZKYXF
Model Number
- CS/CU-WU12ZKYXF

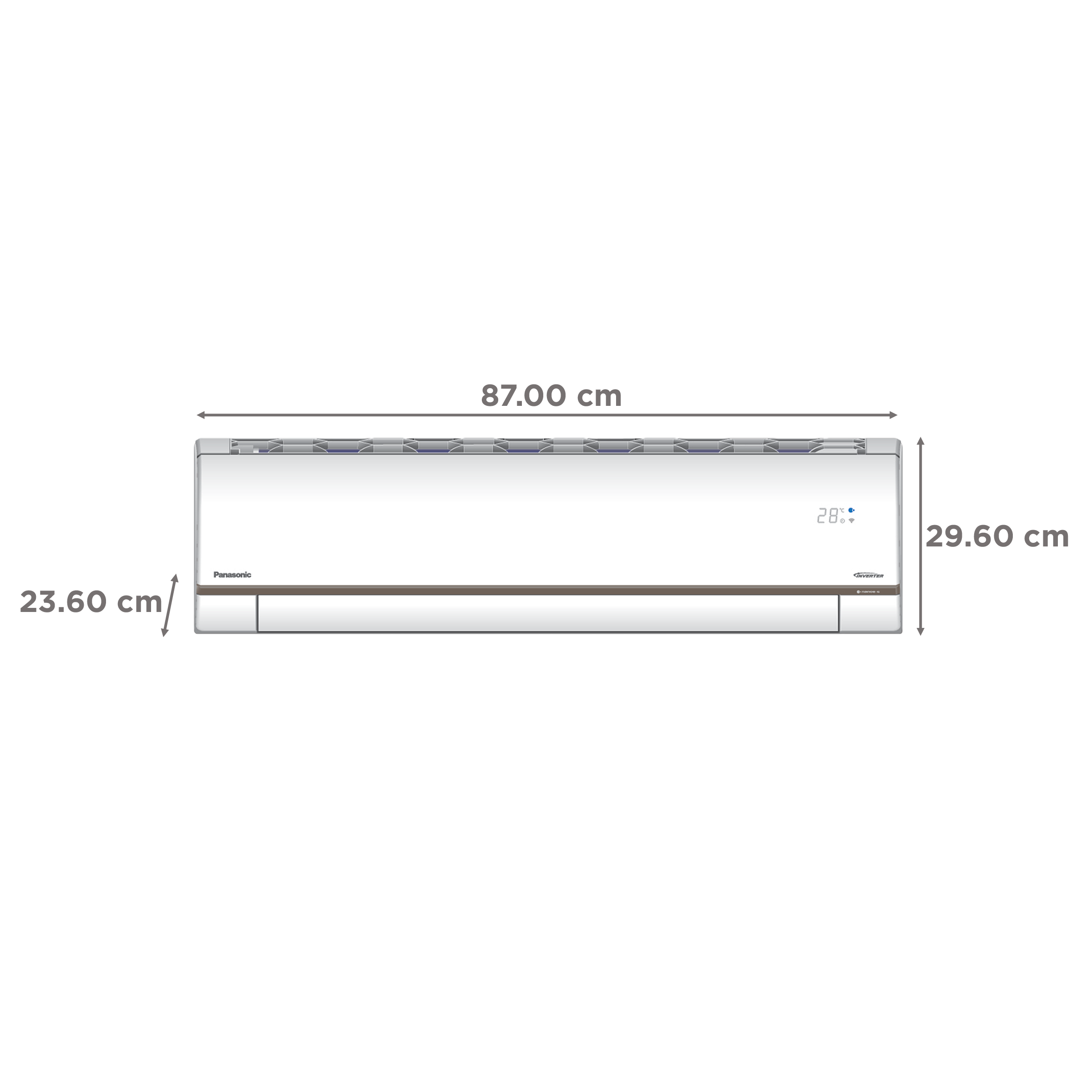

Product Dimensions (Open)
Dimensions In CM (WxDxH)
- 86.9 x 23.5 x 29.5
Product Weight
- 12 Kg
Dimensions In Inches (WxDxH)
- 34.25 x 9.29 x 11.65
Air Conditioner Features
Convertible Mode
- Yes
Air Flow Volume
- 477 CFM
Humidity Control
- Yes
Types of Sensors
- Temperature Sensor
Inverter Technology
- Yes
Stabilizer Free Operation
- Yes
Cooling Capacity
- 3500 Watts
Ambient Temperature (Cooling/Heating) In Degree Celsius
- 16 - 52 Degree Celsius
Rated Current
- 4.7 Amps
Cooling Power Input
- 11942 Btu/h
Air Conditioner Features
- Stabilizer Free Operation Voltage Range: 100 - 290V
Air Conditioner Functions
Compressor Type
- Single Rotary Compressor
Refrigerant Type
- R-32
Noise Level (Indoor Unit)
- 43 db
Noise Level (Outdoor Unit)
- 51 db
Air Conditioner Filters
- Ag Clean Plus Filter | NanoeX Plus Nanoe-G Filter
Air Purification Function
- Yes
Air Purification Technology
- Active Purification
Additional Air Conditioner Functions
- converti7
Air Conditioner Physical Attributes
Connecting Pipe Type
- Copper Connecting Pipe
Connecting Pipe Length
- 3 Meters
Condenser Coil Type
- Copper
Evaporator Coil Type
- Copper Evaporator Coil
Drainage Hose Pipe
- Yes
Louvers Swing Type
- Up/Down | Left/Right
Other Body Features
- ECO Tough ODU Casing
Smart Air Conditioner Functions
Smart Sensors
- Yes
Voice Guidance
- Yes
Additional Smart Functions
- Amazon Alexa and Google Assistant Support | Google Home Compatibility
Air Conditioner Screen Specifications
Display
- Hidden
Network Connectivity
Wi-Fi Supported
- Yes
Remote Control Details
Remote Control
- IR
Remote Battery Type
- AAA
Remote Additional Features
- Glow Buttons
Energy Standards
Energy Efficiency (Star Rating)
- 4 Star
Economy Mode
- Yes
Air Conditioner Plug Details
Power Consumption
- 1025 Watts
Voltage Rating
- 230 V
Frequency
- 50 Hz
Phase
- Single Phase
Cord Length
- 3.6 Meters
Materials & Durability
Body Material
- Plastic
Aesthetics
Brand Color
- White
Color
- WHITE
In The Box
Documents
- User-Manual | Warranty Card
Main product
- 1 x Indoor Unit & Outdoor Unit
Accessories
- RemoteControl | RemoteControlBattery | InstallationKit
Generic Name
- Air Conditioner
Product Dimensions Outdoor Unit
Dimensions in CM (W x D x H)
- 78.0 x 28.8 x 54.2
Dimensions in Inches (W x D x H)
- 30.70 x 11.33 x 21.33
Outdoor Unit Weight
- 23 Kg
Packaged Dimensions
Package Dimensions in Inches (W x D x H)
- 37.79 x 10.86 x 14.17
Package Weight
- 14 Kg
Package Dimensions in cm (W x D x H)
- 96.0 x 27.6 x 36.0
Product Packaged Dimensions Outdoor Unit
Outdoor Unit Package Dimensions in CM (W x D x H)
- 90.0 x 40.5 x 60.7
Dimensions in Inches (W x D x H)
- 35.43 x 15.94 x 23.89
Outdoor Unit Package Weight
- 27 Kg
After Sales & Services
Warranty on Main Product
- 12 Months
Additional Warranties
- 1 Year Warranty on Condenser| 10 Years Warranty on Compressor
Warranty Type
- Onsite
Installation & Demo
- Croma will coordinate for Installation and Demo on Chargeable Basis
Installation & Demo applicable
- Yes
Certification
ROHS Compliance
- Yes
Company Contact Information
Customer Support Number
- 18001081333
Customer Support Email
- helpline@in.panasonic.com
Country of Manufacture
- India
Country of Brand Origin
- Japan
Croma Service Promise
Customer Support Email
- customersupport@croma.com
Registered Name and Address
- Infiniti Retail Ltd. - Unit No. 701 & 702, 7th Floor, Kaledonia, Sahar Road, Andheri (East); Mumbai - 400069. India
Customer Support Number
- 1800 572 7662
Customer Care Contact Person
- Grievance Officer
Overview
Optimal Cooling
If you’re looking for a way to cool down a room as large as 130Sq.Ft., opt for the 477CFM Panasonic CS/CU-WU12ZKYXF 1-ton Split Air Conditioner. You can experience the convenience of the 7-in-1 convertible mode in this AC, which lets you modify the cooling capacity to save energy while maintaining your comfort.
Shield Blu Plus Technology
The Shield Blu Plus technology creates an anti-corrosive layer on indoor and outdoor units of this AC to prevent scratches and leakage.
Active Air Purification
As this AC features the active air purification method, it proactively improves indoor air quality.
Single Rotary Compressor
With its resilient single rotary compressor, this 1-ton AC is engineered for both cooling effectiveness and long-term use.
4-Star AC
Boasting a 4-star rating and consuming just 1025W, this air conditioner offers efficient cooling without putting a strain on your electricity bill, making it a cost-effective choice.
Copper Condenser Coil
With a copper condenser coil, this Panasonic air conditioner optimises heat exchange efficiency, resulting in fast and efficient cooling in your room.
AG Clean Plus Filter
Fitted with an efficient AG clean plus filter, this AC plays a vital role in removing dust, allergens, and airborne impurities to maintain good air quality.
Auto-Restart
With auto-restart, this AC offers peace of mind by automatically restoring your desired cooling settings after power disruptions.
Self-Clean
With this air conditioner's self-clean feature you can enjoy hassle-free maintenance as it takes care of cleaning tasks automatically, keeping your unit in great condition.
R32 Refrigerant
Featuring R32 refrigerant, this air conditioner is engineered for eco-conscious and efficient cooling, reducing its impact on the environment.
Stabiliser-Free Operation
You can enjoy worry-free operation even during voltage fluctuations with this air conditioner's stabiliser-free operation.
Inverter Compatibility
When you have this inverter-compatible AC, power cuts won't disrupt your cooling comfort.
