Key Features
Within 72 Hours Installation/Demo
7 Days Brand Replacement
Key Features
- 1 Ton Inverter Split AC, 3 Star Rating
- Copper Condenser
- 1 Year Comprehensive Warranty, 10 Years Compressor Warranty
- For Rooms up to 130 sqft
- Power Consumption: 1095 Watts
- Refrigerant: R32
- Stabilizer Free Operation, Passive Air Purification
Specifications
Air Conditioner Category
Air Conditioner Type
- Split
Air Conditioner Capacity
- 1 Ton
Coverage Area
- 130 Sq.Ft.
Approximate Coverage Area(Sq.M)
- 12.07 Sq.M.
Installation Type
- Wall Mount
Manufacturer Details
Brand
- Panasonic
Model Series
- CS/CU-KU12ZKYF1
Model Number
- CS/CU-KU12ZKYF1

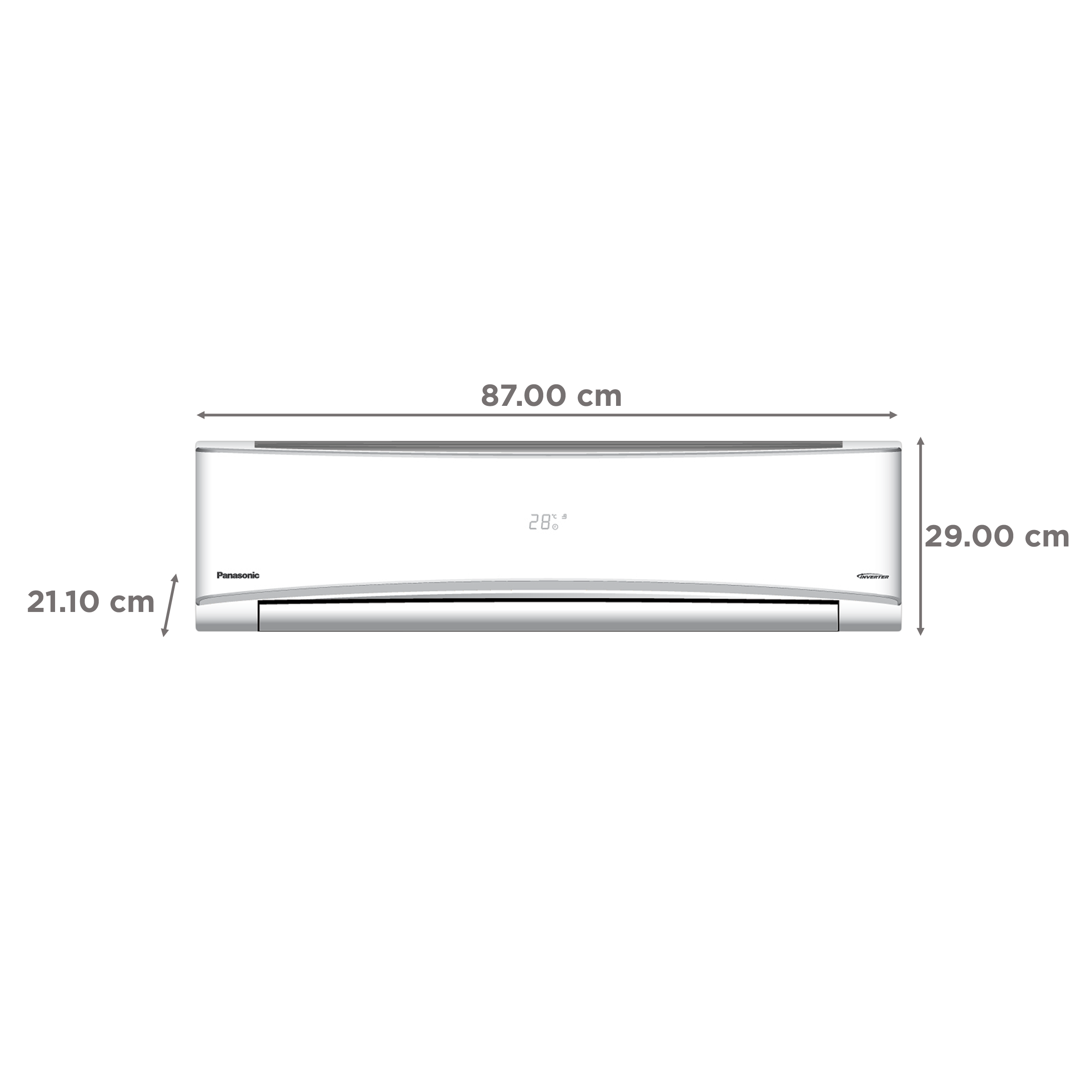

Product Dimensions (Open)
Dimensions In CM (WxDxH)
- 86.9 x 21.1 x 29.0
Product Weight
- 9 Kg
Dimensions In Inches (WxDxH)
- 34.25 x 8.31 x 11.42
Air Conditioner Features
Convertible Mode
- Yes
Air Flow Volume
- 424 CFM
Humidity Control
- Yes
Types of Sensors
- Temperature Sensors
Inverter Technology
- Yes
Stabilizer Free Operation
- Yes
Cooling Capacity
- 11772 (5295 - 12970) BTU Per Hours | 3450 (1552 - 3800) Watts
Ambient Temperature (Cooling/Heating) In Degree Celsius
- 16 - 52 Degree Celsius
Rated Current
- 5 Amps
Cooling Power Input
- 1095 (369 - 1478) Watts
Air Conditioner Features
- Units Consumed Per 1600 Hours: 676.37 | Stabilizer Free Operation Voltage Range: 145 - 285V
Air Conditioner Functions
Compressor Type
- Single Rotary Compressor
Refrigerant Type
- R-32
Temperature Settings
- 24
Noise Level (Indoor Unit)
- 37 - 45 dB
Noise Level (Outdoor Unit)
- 52 dB
Air Purification Function
- Yes
Air Purification Technology
- Passive Purification
Additional Air Conditioner Functions
- converti7
Air Conditioner Physical Attributes
Connecting Pipe Type
- Copper Connecting Pipe
Connecting Pipe Length
- 3 Meters
Condenser Coil Type
- Copper
Evaporator Coil Type
- Copper Evaporator Coil
Drainage Hose Pipe
- Yes
Louvers Swing Type
- Up/Down
Other Body Features
- Eco Tough ODU Casing
Air Conditioner Screen Specifications
Display
- Hidden
Remote Control Details
Remote Control
- IR
Remote Battery Type
- AAA
Remote Additional Features
- Glow Buttons
Energy Standards
Energy Efficiency (Star Rating)
- 3 Star
Economy Mode
- Yes
Air Conditioner Plug Details
Power Consumption
- 1095 Watts
Voltage Rating
- 220 - 240V
Frequency
- 50 Hz
Phase
- Single Phase
Cord Length
- 3.6 Meters
Maximum Operating Temperature
- 52 Degree Celsius
Materials & Durability
Body Material
- Plastic
Aesthetics
Brand Color
- White
Color
- WHITE
In The Box
Documents
- Warranty Card | User-Manual
Main product
- 1 x Indoor Unit & Outdoor Unit
Accessories
- RemoteControl | InstallationKit | RemoteControlBattery
Generic Name
- Air Conditioner

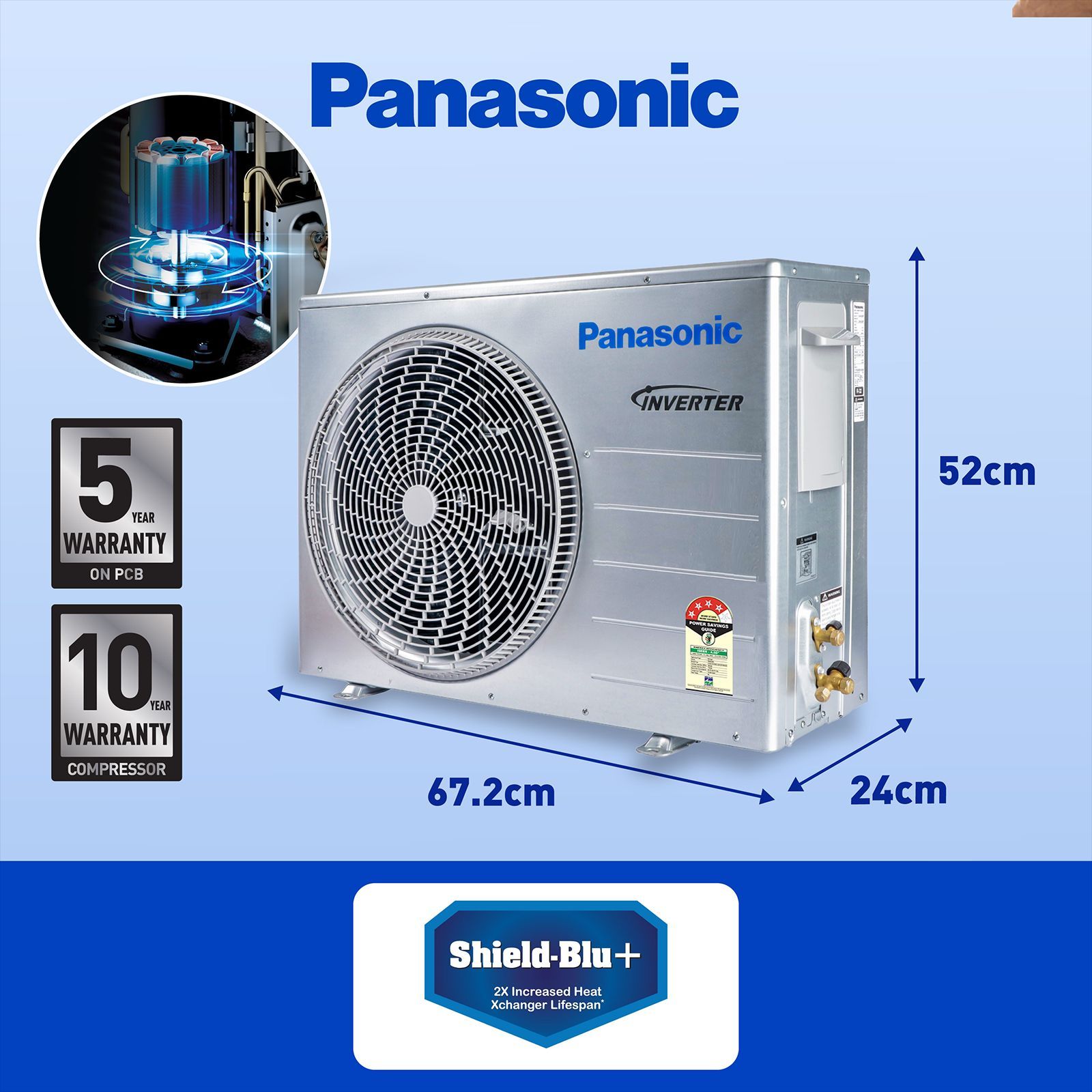

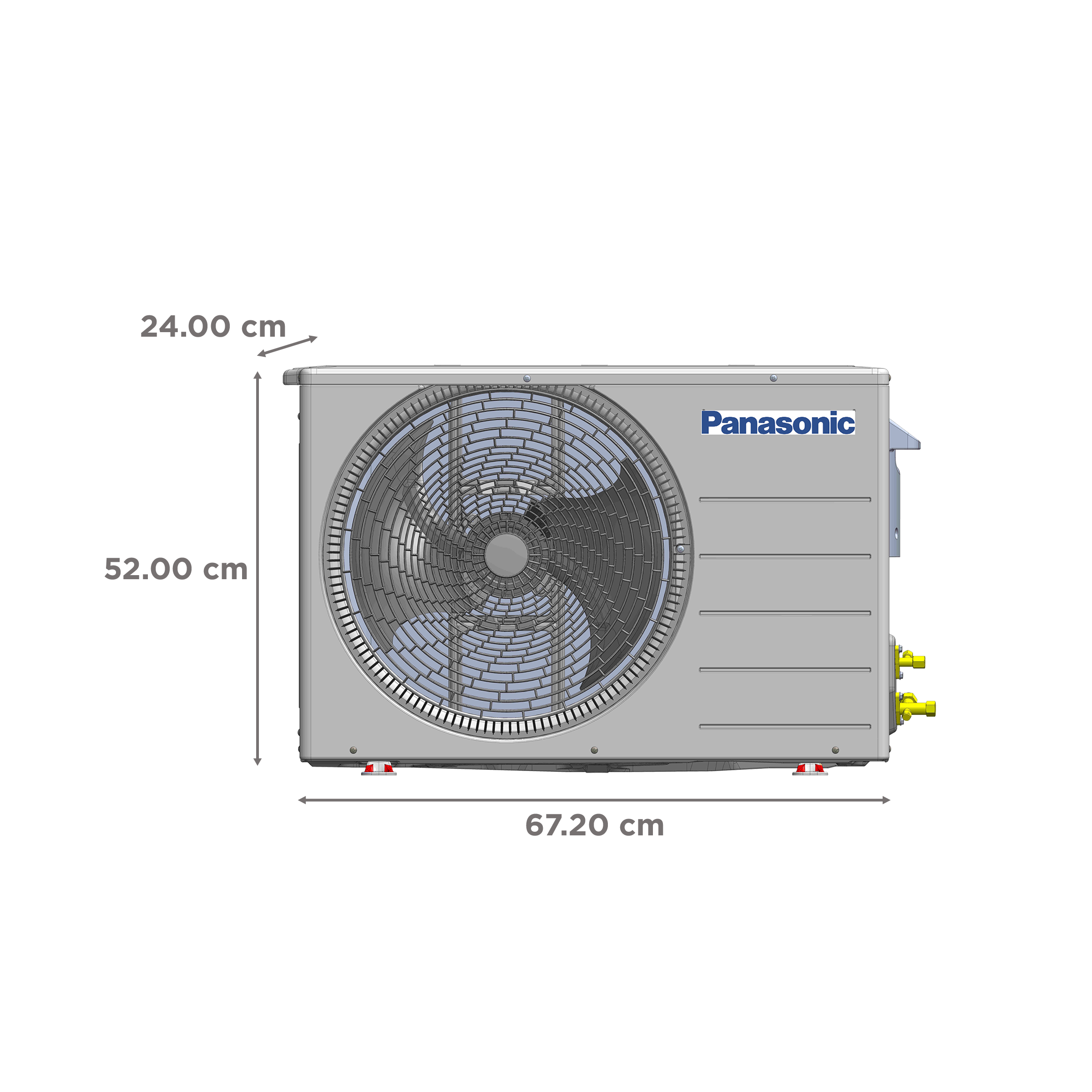

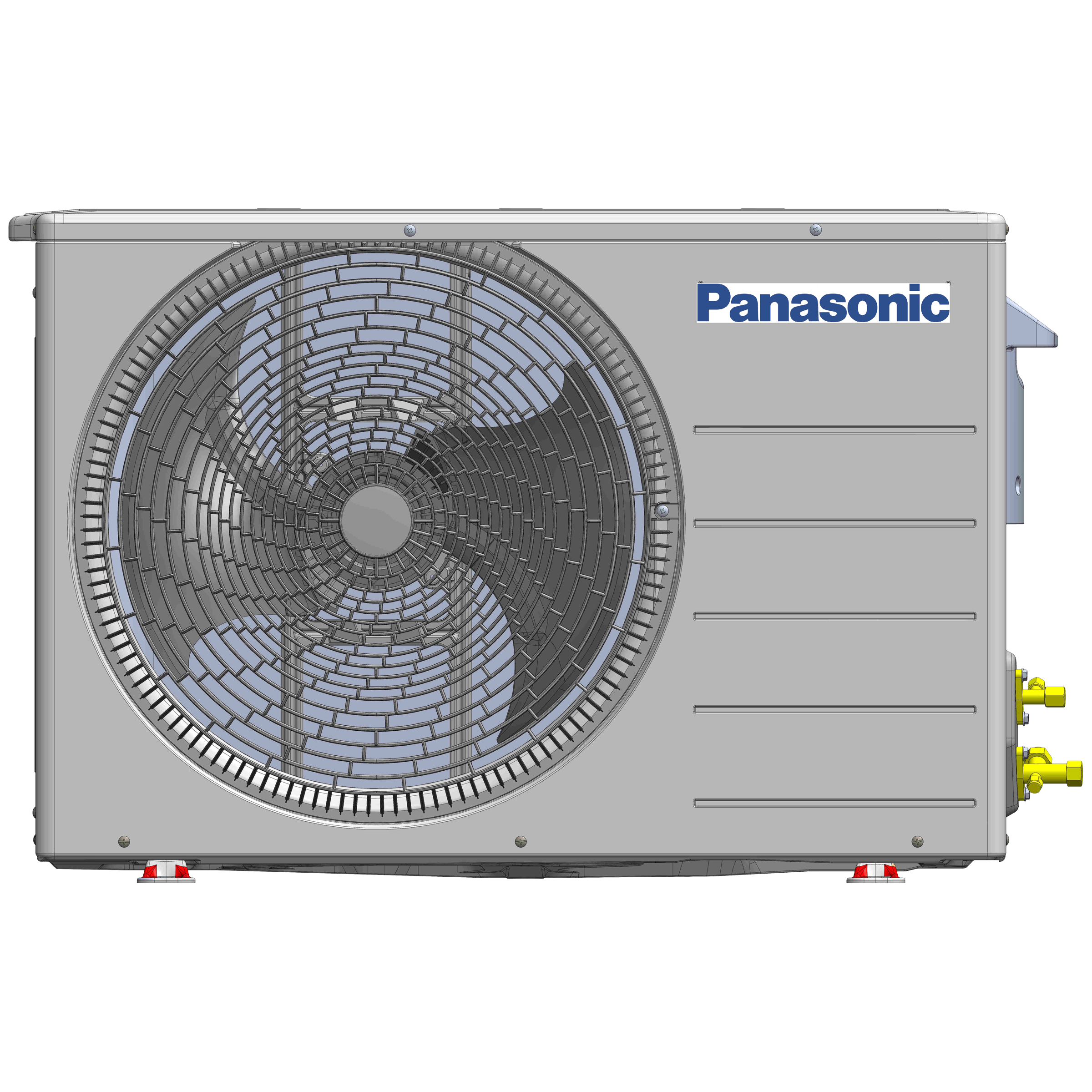

Product Dimensions Outdoor Unit
Dimensions in CM (W x D x H)
- 67.20 x 24.00 x 52.00
Dimensions in Inches (W x D x H)
- 26.46 x 9.45 x 20.47
Outdoor Unit Weight
- 22 Kg
Packaged Dimensions
Package Dimensions in Inches (W x D x H)
- 37.8 x 9.49 x 14.17
Package Weight
- 10 Kg
Package Dimensions in cm (W x D x H)
- 96.00 x 24.10 x 36.00
Product Packaged Dimensions Outdoor Unit
Outdoor Unit Package Dimensions in CM (W x D x H)
- 79.50 x 37.00 x 57.50
Dimensions in Inches (W x D x H)
- 31.3 x 14.57 x 22.64
Outdoor Unit Package Weight
- 25.5 Kg
After Sales & Services
Warranty on Main Product
- 12 Months
Additional Warranties
- 1 Year Warranty on Condenser| 10 Years Warranty on Compressor
Warranty Type
- Onsite
Installation & Demo
- Croma will coordinate for Installation and Demo on Chargeable Basis
Installation & Demo applicable
- Yes
Certification
ROHS Compliance
- Yes
Energy Star Certification
- Yes
Company Contact Information
Customer Support Number
- 18001081333
Customer Support Email
- helpline@in.panasonic.com
Manufacturer/Importer/Marketer Name & Address
- Manufacturer Name & Address: Panasonic India Pvt. Ltd. 12th Floor Ambience Tower Ambience Island NH-8 Gurgaon -122002 Haryana
Country of Manufacture
- India
Country of Brand Origin
- Japan
Croma Service Promise
Customer Support Email
- customersupport@croma.com
Registered Name and Address
- Infiniti Retail Ltd. - Unit No. 701 & 702, 7th Floor, Kaledonia, Sahar Road, Andheri (East); Mumbai - 400069. India
Customer Support Number
- 1800 572 7662
Customer Care Contact Person
- Grievance Officer
Overview
Enjoy Efficient Cooling
Boasting an airflow volume of up to 424CFM, the Panasonic CS/CU-KU12ZKYF1 1-ton Split Air Conditioner is ideal for rooms up to 130Sq.Ft. Furthermore, you can tailor your cooling experience with this AC's 7-in-1 convertible mode, which allows you to customise the cooling capacity for maximum comfort and energy efficiency.
Passive Air Purification
Integrated into standard air filtration systems, this AC employs a continuous and energy-efficient method to improve indoor air quality. The incorporated filters mechanically capture and eliminate particles such as dust and pollen from the air enhancing indoor air quality.
Sleep Mode
Offering sleep mode in this AC creates the ideal sleeping conditions by regulating temperature for a peaceful and energy-efficient rest.
Single Rotary Compressor
Integrated with single rotary compressor in this 1-ton AC is a testament to its lasting performance and cooling efficiency.
3-Star AC
With a focus on energy efficiency, this air conditioner has a 3-star rating and a low power consumption of 1095W, making it a wallet-friendly cooling solution.
Copper Condenser Coil
With a copper condenser coil in this air conditioner it enhances heat exchange efficiency, resulting in an efficient and rapid cooling process.
AG Clean Plus Filter
Equipped with an advanced AG clean plus filter, this AC efficiently captures dust, allergens, and airborne contaminants, creating a healthy indoor environment.
Self-Clean
Incorporating a self-clean mode, this AC takes the hassle out of maintaining a clean and well-functioning unit.
R32 Refrigerant
Employing R32 refrigerant, this AC offers energy-efficient and eco-conscious cooling.
Stabiliser-Free Operation
You don’t have to worry about getting an external stabiliser to handle voltage fluctuations, thanks to this air conditioner’s stabiliser-free operation.
Compatible with Inverters
Being inverter-compatible, this AC ensures continuous cooling even when the power goes out.
