Key Features
Within 72 Hours Installation/Demo
7 Days Brand Replacement
Key Features
- 1.5 Ton Inverter Split Smart AC, 3 Star Rating
- Copper Condenser
- 1 Year Comprehensive Warranty, 10 Years Compressor Warranty
- For Rooms up to 180 sqft
- Power Consumption: 1600 Watts
- Refrigerant: R32
- Stabilizer Free Operation, Passive Air Purification
Specifications
Air Conditioner Category
Air Conditioner Type
- Split
Air Conditioner Capacity
- 1.5 Ton
Coverage Area
- 180 Sq.Ft.
Approximate Coverage Area(Sq.M)
- 16.72 Sq.M.
Installation Type
- Wall Mount
Manufacturer Details
Brand
- Panasonic
Model Series
- CS/CU-KZ18ZKYF
Model Number
- CS/CU-KZ18ZKYF

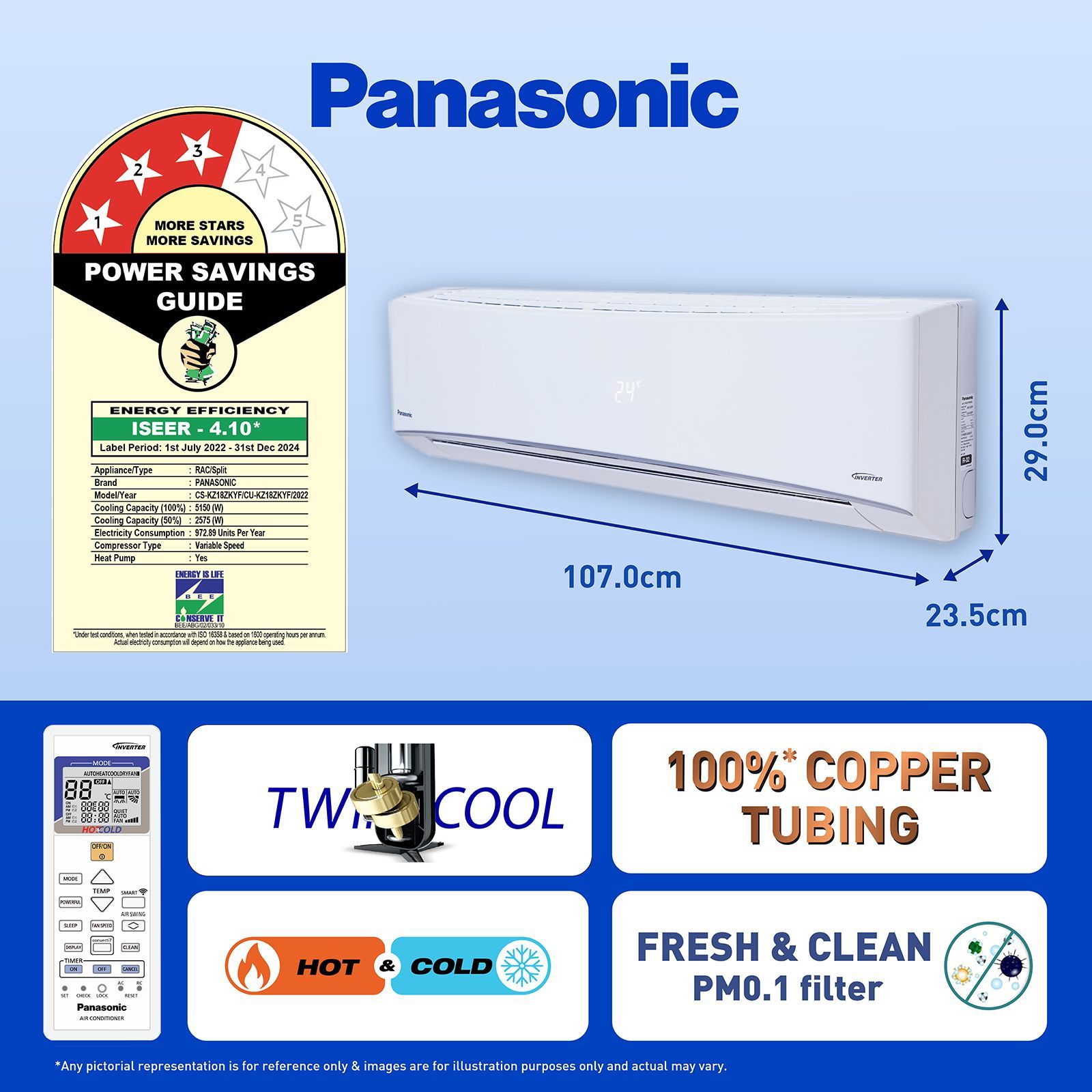

Product Dimensions (Open)
Dimensions In CM (WxDxH)
- 107. x 23.4 x 29.0
Product Weight
- 12 Kg
Dimensions In Inches (WxDxH)
- 42.13 x 9.25 x 11.42
Air Conditioner Features
Convertible Mode
- Yes
Heating Technology
- Yes
Air Flow Volume
- 636 CFM
Humidity Control
- Yes
Types of Sensors
- Temperature Sensors
Inverter Technology
- Yes
Stabilizer Free Operation
- Yes
Cooling Capacity
- 5150 (2318 - 5665) Watts | 17572 (7910 - 19330) BTU Per Hour
Heating Capacity
- 17742 (7984 - 19107) Watts
Ambient Temperature (Cooling/Heating) In Degree Celsius
- Minus 7 - 52 Degree Celsius
Rated Current
- 7.3 Amps
Cooling Power Input
- 1600 (523 - 2160) Watts
Heating Power Input
- 1500 (400 - 2025) Watts
Air Conditioner Features
- Units Consumed Per 1600 Hours: 972.89 | Stabilizer Free Operation Voltage Range: 145 - 285V
Air Conditioner Functions
Compressor Type
- Twin Rotary Compressor
Refrigerant Type
- R-32
Temperature Settings
- 24
Noise Level (Indoor Unit)
- 39 - 47 dB
Noise Level (Outdoor Unit)
- 53 dB
Air Purification Function
- Yes
Air Purification Technology
- Passive
Additional Air Conditioner Functions
- converti7
Air Conditioner Physical Attributes
Connecting Pipe Type
- Copper Connecting Pipe
Connecting Pipe Length
- 3 Meters
Condenser Coil Type
- Copper
Evaporator Coil Type
- Copper Evaporator Coil
Drainage Hose Pipe
- Yes
Louvers Swing Type
- Up/Down
Other Body Features
- ECO Tough ODU Casing
Smart Air Conditioner Functions
Smartphone Application Controls
- MirAIe
Smart Sensors
- Yes
Voice Guidance
- Yes
Additional Smart Functions
- Amazon Alexa and Google Assistant Support | Google Home Compatibility
Air Conditioner Screen Specifications
Display
- Hidden
Network Connectivity
Wi-Fi Supported
- Yes
Remote Control Details
Remote Control
- IR
Remote Battery Type
- AAA
Remote Additional Features
- Glow Buttons

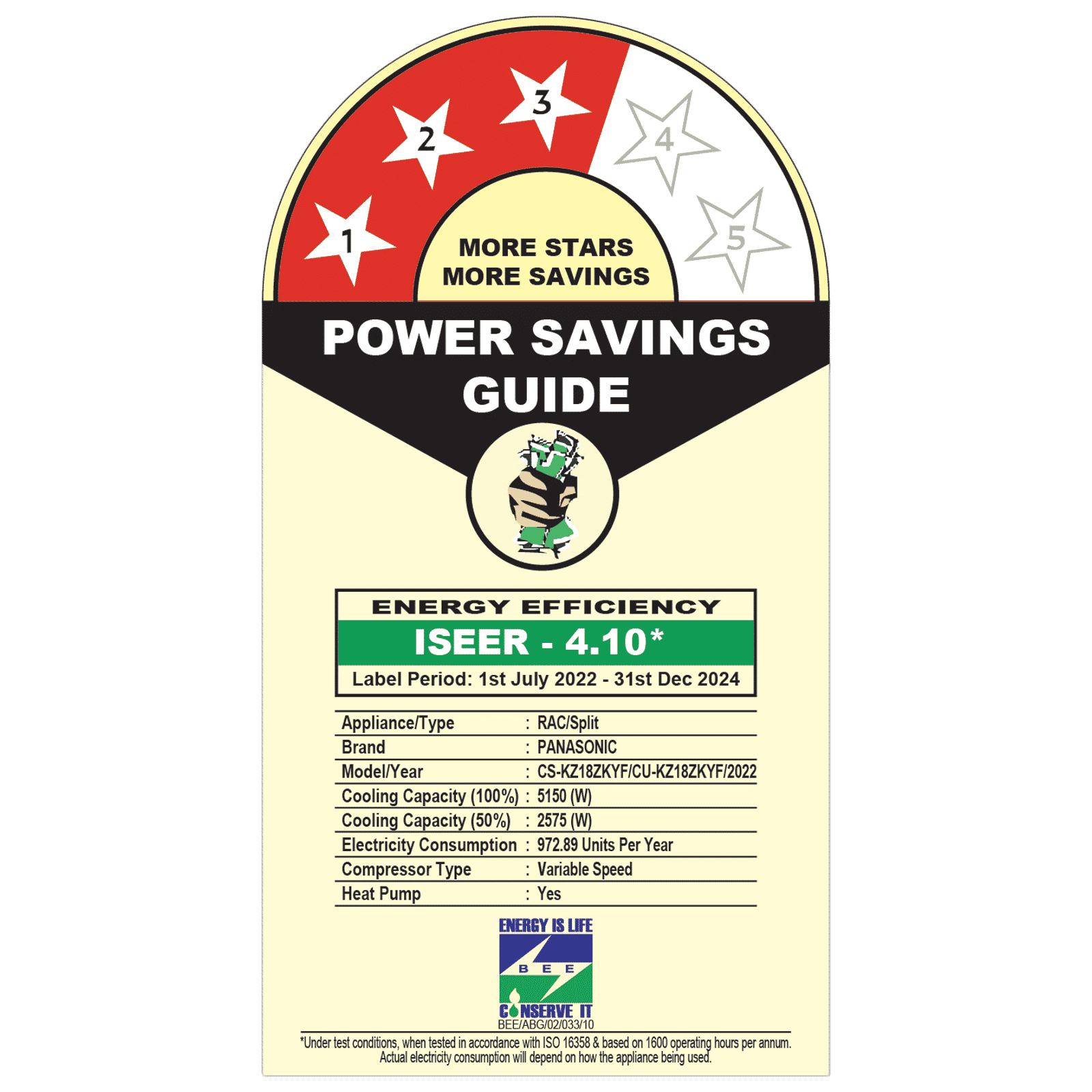

Energy Standards
Energy Efficiency (Star Rating)
- 3 Star
Economy Mode
- Yes
Air Conditioner Plug Details
Power Consumption
- 1600 Watts
Voltage Rating
- 220 - 240V
Frequency
- 50 Hz
Phase
- Single Phase
Cord Length
- 3.6 Meters
Maximum Operating Temperature
- 52 Degree Celsius
Materials & Durability
Body Material
- Plastic
Aesthetics
Brand Color
- White
Color
- WHITE
In The Box
Documents
- Warranty Card | User-Manual
Main product
- 1 x Indoor Unit & Outdoor Unit
Accessories
- RemoteControl | RemoteControlBattery | InstallationKit
Generic Name
- Air Conditioner

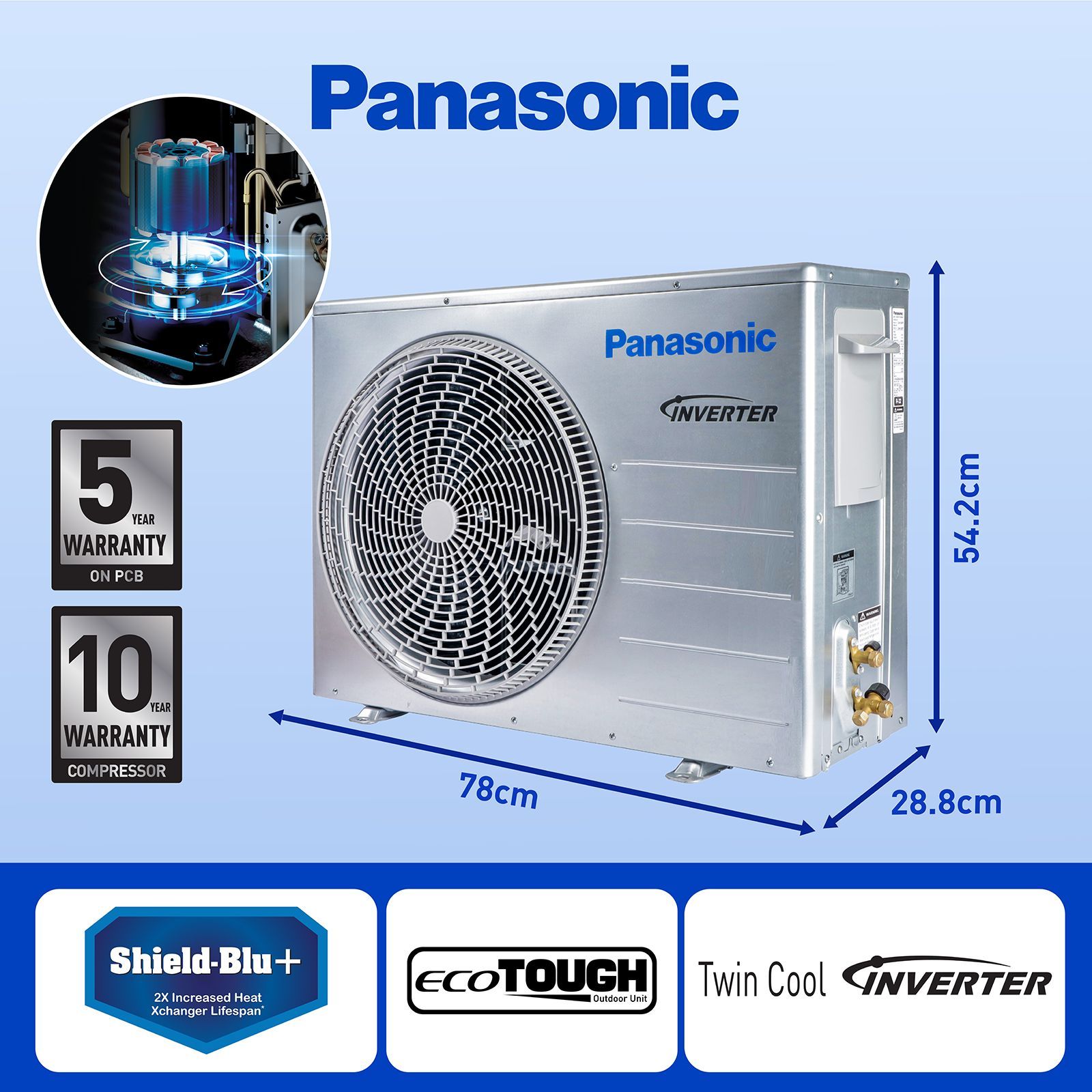

Product Dimensions Outdoor Unit
Dimensions in CM (W x D x H)
- 78.00 x 28.80 x 54.20
Dimensions in Inches (W x D x H)
- 30.71 x 11.34 x 21.34
Outdoor Unit Weight
- 28.5 Kg
Packaged Dimensions
Package Dimensions in Inches (W x D x H)
- 45.67 x 14.53 x 11.06
Package Weight
- 14 Kg
Package Dimensions in cm (W x D x H)
- 116.00 x 36.90 x 28.10
Product Packaged Dimensions Outdoor Unit
Outdoor Unit Package Dimensions in CM (W x D x H)
- 90.00 x 40.50 x 60.70
Dimensions in Inches (W x D x H)
- 35.43 x 15.94 x 23.9
Outdoor Unit Package Weight
- 32.5 Kg
After Sales & Services
Warranty on Main Product
- 12 Months
Additional Warranties
- 1 Year Warranty on Condenser| 10 Years Warranty on Compressor
Warranty Type
- Onsite
Installation & Demo
- Croma will coordinate for Installation and Demo on Chargeable Basis
Installation & Demo applicable
- Yes
Certification
ROHS Compliance
- Yes
Energy Star Certification
- Yes
Company Contact Information
Customer Support Number
- 18001081333
Customer Support Email
- helpline@in.panasonic.com
Country of Manufacture
- India
Country of Brand Origin
- Japan
Croma Service Promise
Customer Support Email
- customersupport@croma.com
Registered Name and Address
- Infiniti Retail Ltd. - Unit No. 701 & 702, 7th Floor, Kaledonia, Sahar Road, Andheri (East); Mumbai - 400069. India
Customer Support Number
- 1800 572 7662
Customer Care Contact Person
- Grievance Officer
Overview
Effective AI Cooling
With an airflow volume of up to 636CFM, the Panasonic CS/CU-KZ18ZKYF 1.5-ton Split Air Conditioner, delivers effective cooling for rooms up to 180Sq.Ft. Moreover, featuring AI Auto Cooling to intelligently evaluate room conditions and usage habits, this AC automatically chooses the most appropriate mode according to your temperature preference, guaranteeing optimal comfort.
Fast Cooling
Thanks to its fast cooling, this split air conditioner makes sure that your room cools down quickly and efficiently, providing relief from the heat within minutes of turning on the AC. Therefore, after a tiring outdoor adventure, you can rely on this AC to quickly refresh your space and leave you feeling revitalised in moments.
Voice Control
Experience seamless voice control with Google Assistant and Amazon Alexa compatibility, providing effortless command over your air conditioner. You can utilise your existing Google Assistant or Alexa devices for easy management through simple voice commands.
Versatile Temperature Operation
Ensuring exceptional performance in a wide temperature range, this AC offers cooling efficiency even at scorching temperatures of 52°C and heating capabilities even in freezing conditions as low as -7°C. So, during a blistering summer or chilly winter, this AC ensures comfort and functionality, making it suitable for diverse climates.
7-in-1 Convertible Mode
Enjoy a cooling experience designed for your needs with this AC's 7-in-1 convertible mode, which allows you to adjust the cooling capacity to save energy and stay comfortable.
Twin Rotary Compressor
Housing a strong twin rotary compressor, this 1.5-ton AC is built to deliver dependable cooling and durability.
3-Star AC
Owing to its 3-star rating and a power consumption of just 1600W, this air conditioner is a fairly economical choice for your home.
Copper Condenser Coil
The copper condenser coil in this Panasonic air conditioner enhances heat exchange efficiency, resulting in an efficient and rapid cooling process.
AG Clean Plus Filter
Fitted with a AG clean plus filter, this AC effectively traps dust, allergens, and airborne particles, ensuring clean air in your home.
Self-Clean
Featuring a self-clean mode, this air conditioner ensures easy maintenance, as it automatically takes care of cleaning tasks to keep the unit in optimal condition.
R32 Refrigerant
Designed with R32 refrigerant, this air conditioner prioritises eco-friendliness.
Stabiliser-Free Operation
This air conditioner offers stabiliser-free operation, making it convenient to manage voltage fluctuations without the need for an external stabiliser.
Enjoy Uninterrupted Cooling
Even during power cuts, this AC remains operational because it is inverter-compatible.
